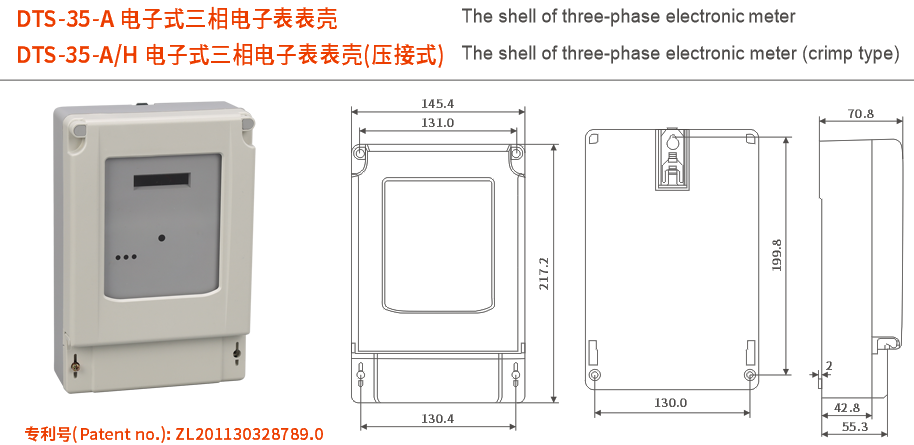

技術參數

◎規(guī)格：端鈕盒銅條，小A(7×9)、中A(10×12)、大A(11×13)

◎電流配置：三相四線1.5(6)A帶10個輔助端口

                      三相四線10(40)A帶10個輔助端口

                      三相四線20(100)A帶10個輔助端口

◎說明：弧形設計、美觀大方，有三相三線小電流端鈕盒可選配

   及可選配防竊蓋。

TECHNICAL PARAMETERS

◎Specifications: copper bar of terminal box, small A(7×9), middle A

    (10×12), large A(11×13)

◎Current contiguration: three-phase four-wire 1.5(6)A with 10 auxiliary ports

                          three-phase four-wire 10(40)A with 10 auxiliary ports

                          three-phase tour-wire 20(100)A with 10 auxiliary ports

◎Note: arc design, nice appearance, Three-phase three-wire terminal

    box with low current port and anti-theft cover are optional.
